Edelbrock 15470 E-Force Supercharger System, Chevy 6.0L LS2

Description

The Edelbrock Universal Supercharger System part #15470 is designed for street rods and muscle cars with cathedral port cylinder heads and a Camaro/GTO LS2 (Gen IV 1998-02) belt offset. Edelbrock system is designed to provide instant and reliable horsepower with low boost for minimum stress on the engine. Its compact design fits under the stock hood on most applications and complements the clean look of any engine compartment. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. This kit DOES NOT INCLUDE A TUNE, A CUSTOM TUNE MUST BE USED, NOT AVAILABLE THROUGH EDELBROCK.

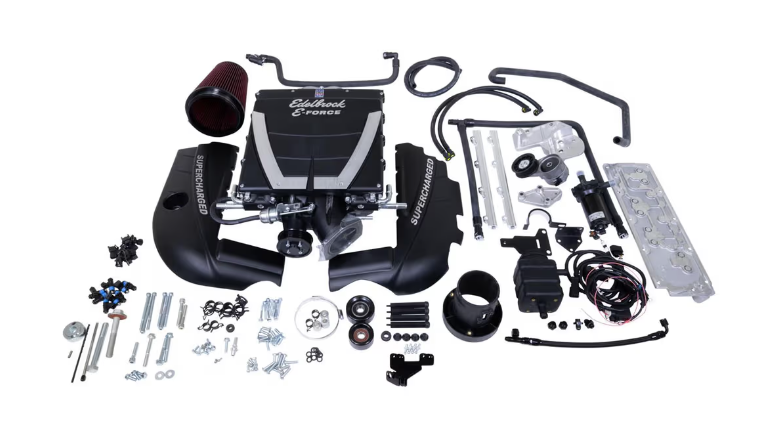

Kit Includes:

• Supercharger Manifold Assembly (Featuring TVS Rotors)
• Cast Aluminum Tensioner/Idler Bracket
• Cast Aluminum Engine Valley Tray
• Heavy Duty Automatic Belt Tensioner
• Dual, High Capacity, Bar and Plate, Intercoolers
• High Flow 95mm Mass Air Flow Sensor Housing
• Extruded Aluminum Fuel Rails, -6 AN Lines
• Intercooler Hoses w/ Quick Connect Fittings
• Sepentine Belt
• Electric Intercooler Water Pump
• Intercooler Recovery Tank
• Fuel Injectors
• Steel Idler Pulleys w/ High Speed Bearings
• Conical Air Filter
• Edelbrock Aluminum Engine Covers
• 3-1/2″ Supercharger Pulley
