LS376/480 495HP Hot Cammed LS3

Description

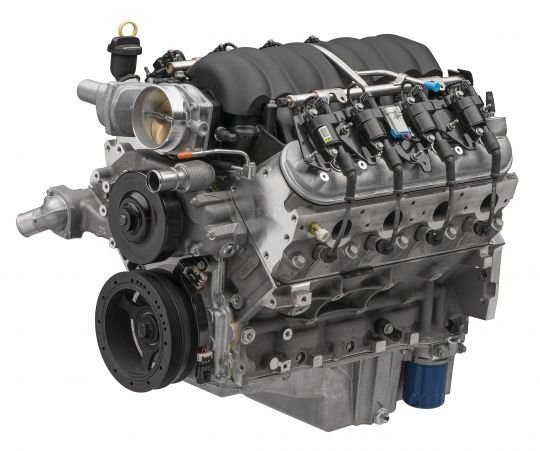

LS376/480 495HP Hot Cammed LS3 Chevrolet Performance Crate Engine – 19540156

495hp @ 6,200 rpm

473 lb.-ft. @ 5,000 rpm

NOTE: Refer to catalog for the complete horsepower and torque testing procedures

The Hot Cam adds heat to the LS3

When our engineers took a production LS3 6.2L (376 cubic inches) engine and swapped the stock camshaft for the racing-inspired LS Hot Cam (P/N 88958753), the result was a stunning 495 horsepower and 473 lb.-ft. of torque. That’s nearly 14 percent more power and torque from just a camshaft change!

We wasted no time in adding that terrific combination—dubbed LS376/480—to our crate engine portfolio. The key to the power boost is the Hot Cam’s 0.525-in lift on both the intake and exhaust sides, along with 219-degree/228-degree duration specs. That’s less lift on the intake side than the stock LS3 cam, but considerably more duration, allowing the valves to stay open a little longer to draw in more air from the rectangular-port L92-style heads.

The crate engine package includes the intake manifold, throttle body and fuel rails, along with the ignition system. Use it with the LS376/480 controller kit P/N 19354330.

Chevrolet Performance LS376/480 495HP Hot Cammed LS3 Crate Engine Installation Notes

• Assembly does not include any electronics
• Use LS376/480 Controller Kit P/N 19354330 for engine operation. Kit includes electronic throttle pedal, which is required for throttle input to the ECU (see catalog)
• Includes Camaro F-body wet sump oil pan
• Not intended for marine applications
• Front-End Accessory Drive Kits are available in two configurations (see catalog for application)
• Does not include exhaust manifolds or flexplate/flywheel

Mobil 1 is the recommended engine oil for all Chevrolet Performance Engines

Chevrolet Performance Crate Engines include a 24-month or 50,000-mile/80,000-kilometer limited warranty, whichever comes first. See your GM dealer for details.

Chevrolet Performance does not utilize any used or remanufactured parts in this crate engine, except for the starter, alternator and power steering pump
