LT4 E-ROD Wet Sump Manual Connect & Cruise Crate Powertrain System

Description

SUPERCHARGED POWER FROM THE C7 CORVETTE Z06!
As the heart of the Corvette Z06, the supercharged LT4 6.2L SC is the most powerful engine ever offered in a regular-production Chevrolet. It features a more-efficient, more-compact 1.7L Eaton R1740 TVS supercharger, which spins at up to 20,000 rpm. That’s enough to generate more than 9 pounds of boost and help produce 650 horsepower and 650 lb.-ft. of torque.

The LT4 is based on the same Gen V Small-Block architecture as the LT1 engine, with several unique features designed to support its higher output and the greater cylinder pressures created by forced induction. They include Rotocast A356T6 aluminum cylinder heads that are stronger and handle heat better than conventional castings, lightweight titanium intake valves and stronger forged aluminum pistons.

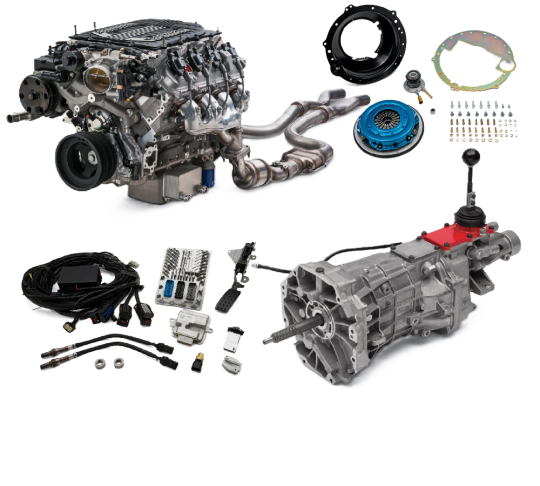

Connect & Cruise System Components:

Part Number: Connect & Cruise CPSLT4ERODT56W
Engine: 19356048
Engine Control System: Included with Engine
Transmission: 19352208

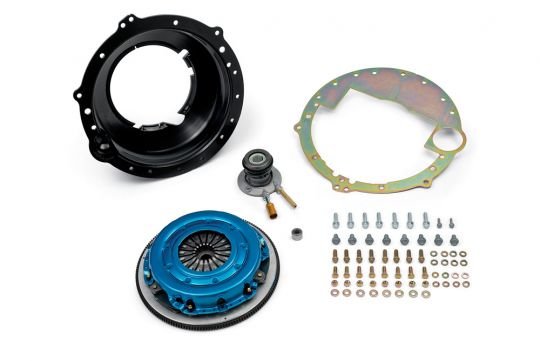

Transmission Install Kit: 19329912

Engine Specifications

• LT4 E-ROD 6.2 (376 cu in) Supercharged
• 650 HP @ 6,000 RPM
• 650 lb-ft @ 4,600 RPM
• 10:1 compression Ratio

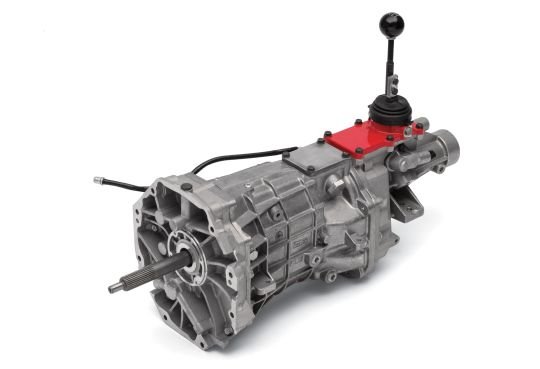

Transmission Specifications

• T56 Super Magnum six-speed manual
• Slip-yoke design, 40-tooth reluctor ring
• 2.66 first gear ratio, 0.63 overdrive ratio
• 33.6 inches long (approx.)
