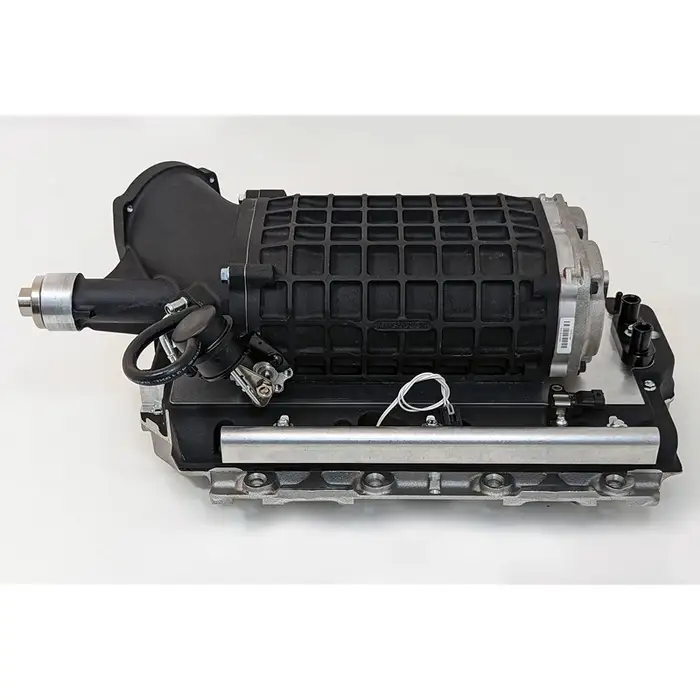

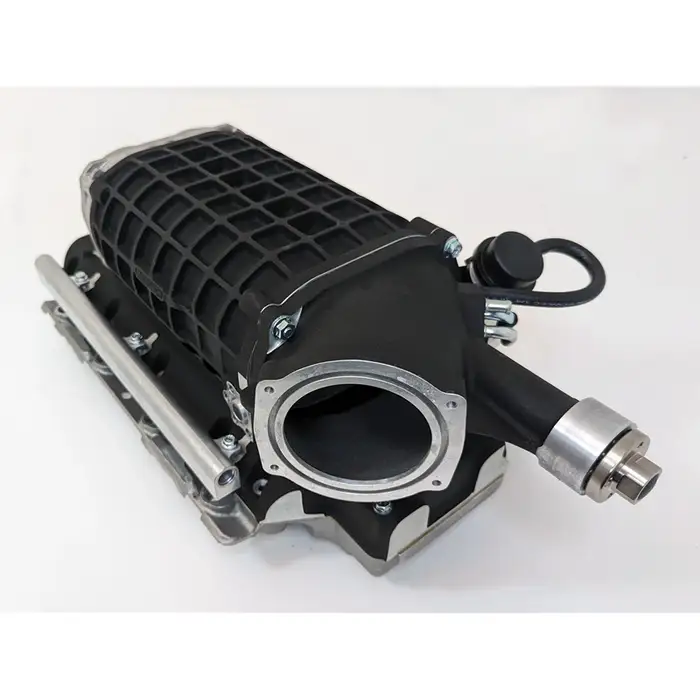

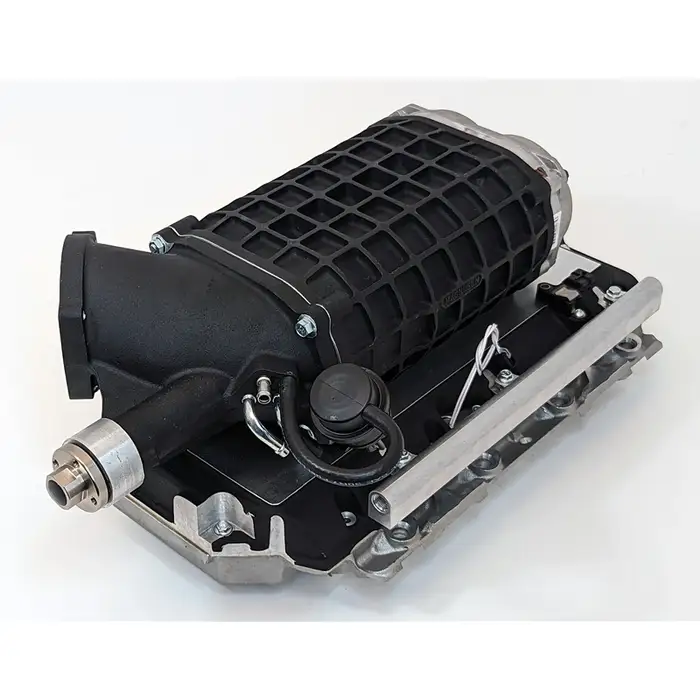

MAGNUSON TVS2300 HOT ROD SUPERCHARGER KIT W/ TRUCK / CAMARO DRIVE

Description

Magnuson TVS2300 “Hot Rod” Supercharger Kit – LS3 Rectangular Port

High-Performance Boost for LS Swap & Budget Builds

The Magnuson TVS2300 “Hot Rod” kit for LS3-based engine applications is designed for GM engines equipped with rectangular port LS3 cylinder heads. Engineered to work with popular Camaro and truck accessory drive systems, this supercharger is ideal for LS swap projects looking for reliable power and durability without the cost of a full OEM-style kit.

Capable of supporting up to 800 horsepower with a properly built engine, the TVS2300 delivers strong, consistent power across the entire RPM range.

When paired with a 3.9″ (99mm) pulley (sold separately) on a 6.0L LS engine, this system produces a conservative ~6 PSI of boost, resulting in gains of approximately 120 rear-wheel horsepower and 120 lb-ft of torque without additional modifications.

Key Features

• TVS2300 hybrid roots-style supercharger
• Supports up to 800 HP with proper engine setup
• 180° rotated design for improved airflow and efficiency
• High thermal efficiency with strong “under-the-curve” power gains
• 2.4 pressure ratio capability
• High helix, four-lobe rotors with 160° of twist
• Fast-response vacuum bypass system reduces parasitic loss at idle and cruise
• Intercooled airflow recirculation for improved temperature control

Fuel System & Compatibility

• Designed for port injection fuel systems
• Includes hard anodized extruded aluminum fuel rails with 1/2″ thru bore
• Accepts short, medium, or tall style injectors
• Does NOT include fuel injectors or crossovers

Fitment

• GM LS3 engines with rectangular port cylinder heads
• Compatible with truck accessory drive systems
• Compatible with 2010–2015 Camaro accessory drive systems
