MERCRACING MR1900 SUPERCHARGER KIT, HONDA K-SERIES ENGINES (UNIVERSAL FITMENT TO K20/K24)

Description

Eaton TVS Supercharger kit with Modular manifold for Honda/Acura K20/24 Engines

• Over 450 HP system
• TVS 1900 Supercharger
• The TVS blower provides tremendous airflow with less rpm

Boost the power output of your K-Series Honda/Acura engine, while retaining drivability, fuel economy, and reliability with this MercRacing TVS 1900 Supercharger Kit. The kit delivers approximately 450 horsepower on pump gas on the stage-1 setup and over 500HP on E70+ fuels. Besides peak horsepower and torque this supercharger offers real “under the curve” power and near instantaneous boost and torque upon demand. The kit not only allows you to keep your air conditioner system but surpasses the power of Rotrex based supercharger kits.

Upgrade your boost with one of our optional stage-2 3.2″ pulleys for an amazing instant gain in horsepower and performance. Custom size pulleys can be made upon request.

Maximizing your efficiency during cruising is the job of the supercharger’s integrated bypass valve. This vacuum operated system allows air to bypass the supercharger and the rotors to “free-spin” under light engine loads. During this situation the parasitic loss of the supercharger system is essentially negated taking less than one-third of a horsepower to turn the rotors. This bypass valve also allows your supercharged vehicle maintain stock-like drivability and fuel economy – giving you a package that delivers power without compromise.

Down to the smallest part, our bolt-on supercharger system is engineered as a complete package. The supercharger, supercharger intake manifold, inlet, pulley, and necessary hardware to make installation simple and easy.

The MP1900 TVS supercharger utilizes EATON’s latest 6th Generation supercharger rotor technology found in such industry leading performance vehicles as the Corvette ZR-1, the Cadillac CTS-V, and the 2013 Mustang GT500. These Twin Vortices Series Superchargers feature a pair of four-lobe, high-helix rotors with 160-degrees of overall twist that are housed in a patented high-flow housing. This highly efficient package requires less power to drive, delivers cooler discharge temperatures, and is much quieter than many of its competitors.

These superchargers blowers are manufactured by a TS16949 certified facility – the highest ISO OEM quality certification standard in the market. Backed by a 3-year/36,000 mile warranty from date purchase. This supercharger is built to last. Designed to be nearly maintenance free you won’t have to worry about anything once it is installed. The first blower oil service at about 100,000 miles.

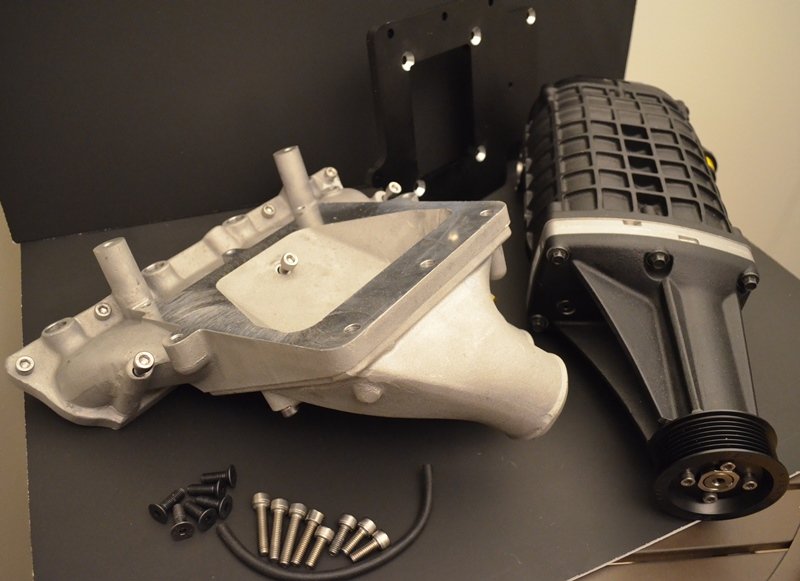

 KIT INCLUDES:

• TVS1900 supercharger
• Air to Air manifold
• Associated mounting hardware
• 3.5″ base boost pulley
• high quality finish CNC inlet – ready for Stock thru 74mm throttle bodies
• Your choice of throttle body adapter for your vehicle

PLEASE NOTE:

Also offered: Complete kit with tensioner and exclusive mercracing fuel rail.
